AERO Vodochody, Czech Republic – Radalytica has demonstrated a new generation of non-destructive testing during an on-site measurement campaign on the L-39NG.
Speaking on-site, David Malančuk, Chief Commercial Officer at Radalytica, explained the significance of the deployment:

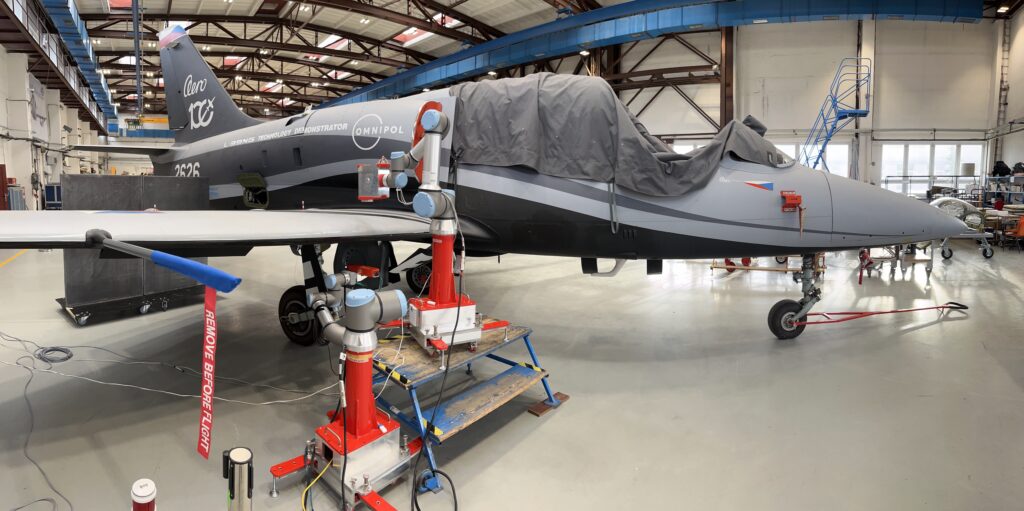

“We are scanning the leading edge of the L-39NG wing directly on the aircraft, using our Radalyx system based on collaborative robots and X-ray technology.”
The system combines two synchronized robotic arms—one equipped with an X-ray tube and the other with a proprietary photon-counting detector. Together, they rotate around the inspected structure, capturing detailed internal data.
“This is the first and only fully portable CT system in the world based on collaborative robotics,” Malančuk added. “The biggest advantage is that we can bring it directly to the field and scan objects of virtually unlimited size.”
Because of its portability, inspections can be performed without disassembling aircraft components or transporting them to specialized facilities—saving both time and cost.
A partnership built on trust and engineering confidence
The project also highlights the forward-thinking approach of Aero Vodochody. Enabling advanced, on-aircraft measurements on a jet platform requires strong technical confidence, robust internal processes, and a team willing to push inspection boundaries. Collaboration with Aero’s engineers further confirms their position among the world’s most respected aircraft manufacturers.
From development to maintenance
Radalytica’s system is designed to support the entire aircraft lifecycle—from R&D and testing, where engineers analyze material behavior, to series production, where quality can be monitored in real time. It also plays a key role in in-service maintenance (MRO).
“If your ultrasonic testing shows there might be a problem—like cracks or voids—but you’re still not sure, you can use an escalation method like ours,” said Malančuk. “We can see things that other methods simply cannot.”
In addition to X-ray CT, the Radalyx platform supports multiple inspection modalities, including ultrasonic, infrared, and UV methods, enabling deeper insight into structural integrity.
Faster insights, lower risk
The system delivers clear operational benefits: inspections can be carried out without dismantling components, destructive sample preparation, or repeated test flights after reinstallation.
By bringing advanced CT imaging directly to the aircraft, Radalytica is enabling faster, more informed decision-making—reducing downtime while improving safety and reliability across the aerospace industry.
